Geberit Cremona Rimless Tornado In Wall Toilet Suite Package - Matte Black Round Button

SKU: GB-PCK-RND-MB-G
Geberit Cremona Rimless Tornado In Wall Toilet Suite Package - Matte Black Round Button | Indulge Bathroom
Indulge

Geberit Cremona Rimless Tornado In Wall Toilet Suite Package - Matte Black Round Button

Description

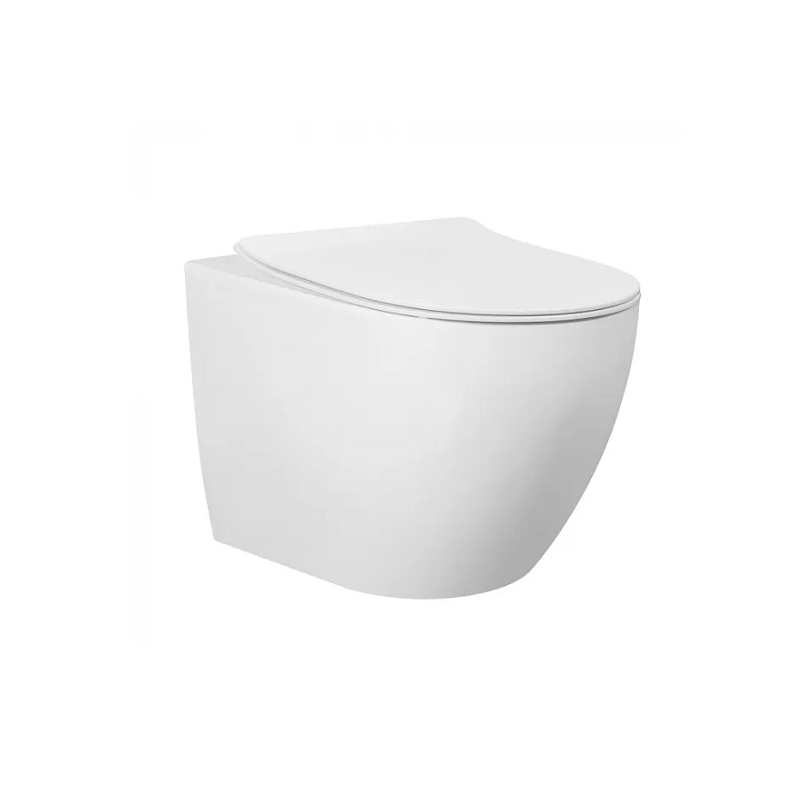

Cremona Vortex Tornado Rimless In Wall Toilet

  • Tornado & Rimless Flushing Technology
  • Ergonomic Soft Close Slim Seat
  • Nano Glazed Easy Maintenance
  • Gloss White Ceramic Finish
  • S-Trap Setout 100-140mm
  • 15 Years Warranty on Ceramics
  • WELS 4 Star Rated: 4.5L/3L, (3.5L)
  • 3 Years on Parts

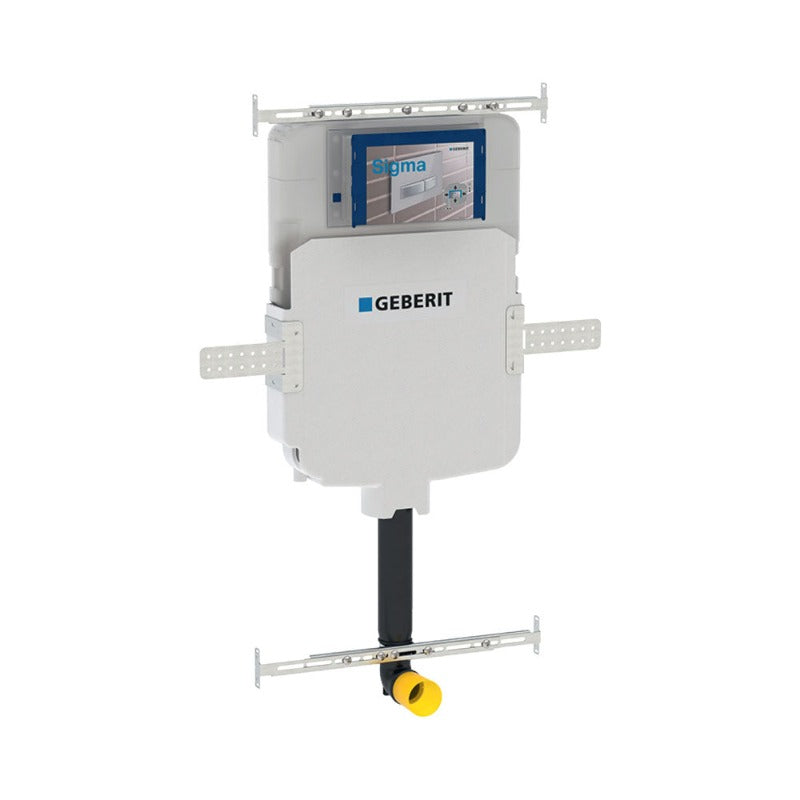

Geberit Sigma 8 In Wall Cistern - Wall Faced

  • WELS 4 Star 4.5L/3L.
  • Leak-proof high density, impact-resistant one-piece blow moulded HDPE tank.
  • A dual-flush plate provides access for servicing the internal parts of the cistern.
  • Suitable for S or P trap back to toilet pans.
  • Operating pressure 10-1000kpa.
  • Fits standard 90mm walls.
  • Freedom to choose over 30 flush button designs available in Australia.
  • Up to 15 years warranty and 25 years spare parts availability.
  • Only compatible with Geberit buttons

The Geberit Sigma8 Concealed Cistern is designed in Switzerland and made in Germany from a single piece of blow moulded HDPE, making it permanently leak-proof.

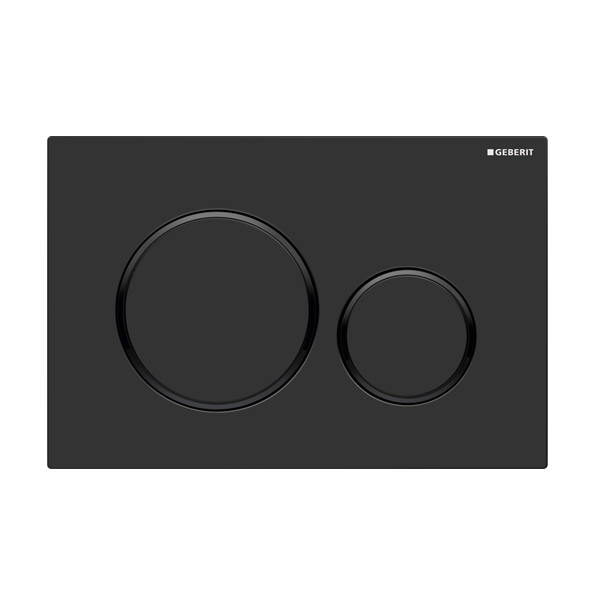

Geberit Sigma 20 Button - Round Matte Black with Black Trim
  • Designed in Switzerland; made in Europe
  • Fingerprint-resistant on matt finishes
  • Small button for half flush, large button for full flush
  • Colour: Round matte black with black trim
  • Perfectly suited to the interior design trends for elegant monochromatic palettes with bold colour statement
Specifications

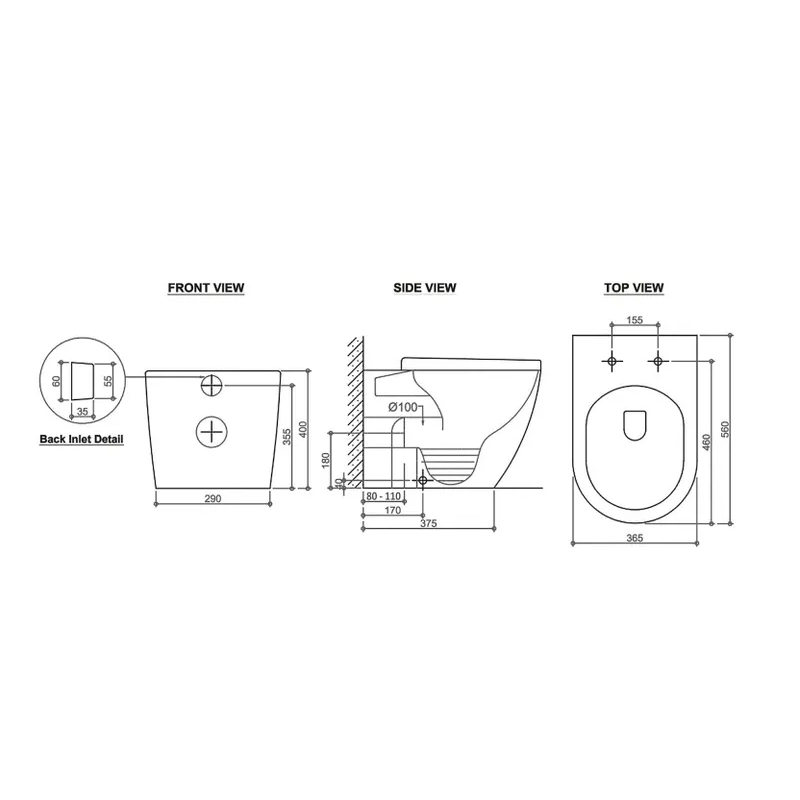

VGH Wall-Hung Toilet Specifications
Overall External Dimensions
Total Width: 365 mm
Total Height: 400 mm
Total Depth: 560 mm

Seat & Pan Dimensions
Pan Height: 400 mm
Pan Width: 365 mm (top) / 290 mm (base)
Seat Length: 460 mm (internal pan opening area)
Material: Vitreous china

Setup Details
Mounting Points: 155 mm (horizontal spacing for wall bolts)
Back Inlet Detail: 60 mm height / 55 mm width / 35 mm depth
Outlet Diameter: Ø 100 mm
Wall to Outlet Center: 170 mm
Lower Mounting Point: 375 mm from front of pan

Plumbing & Trap Clearances
P trap: 180 mm (standard height from finished floor to center of outlet)
Inlet Height: 355 mm (center of inlet from floor)

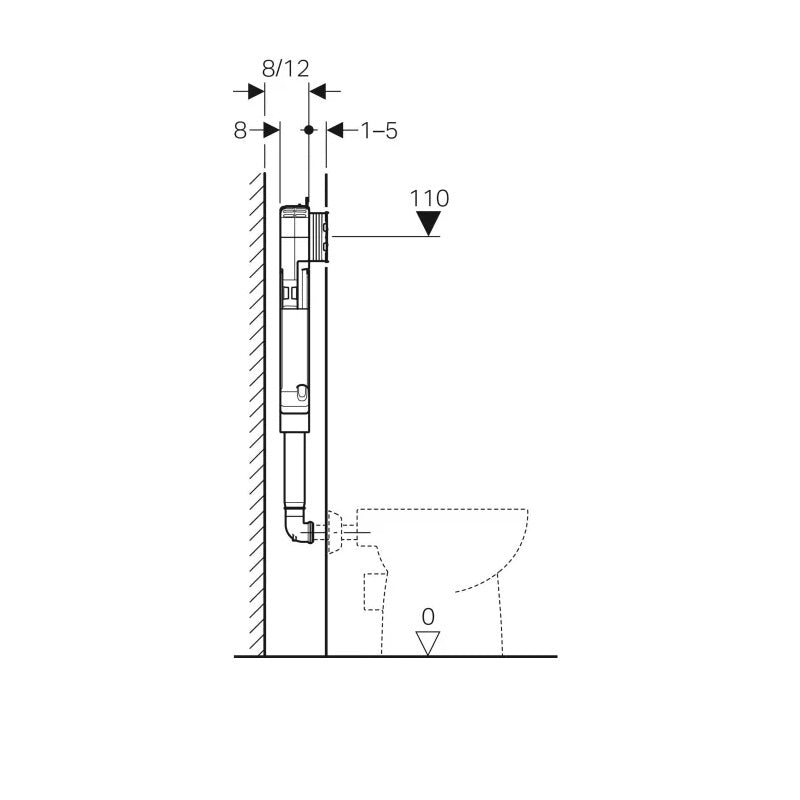

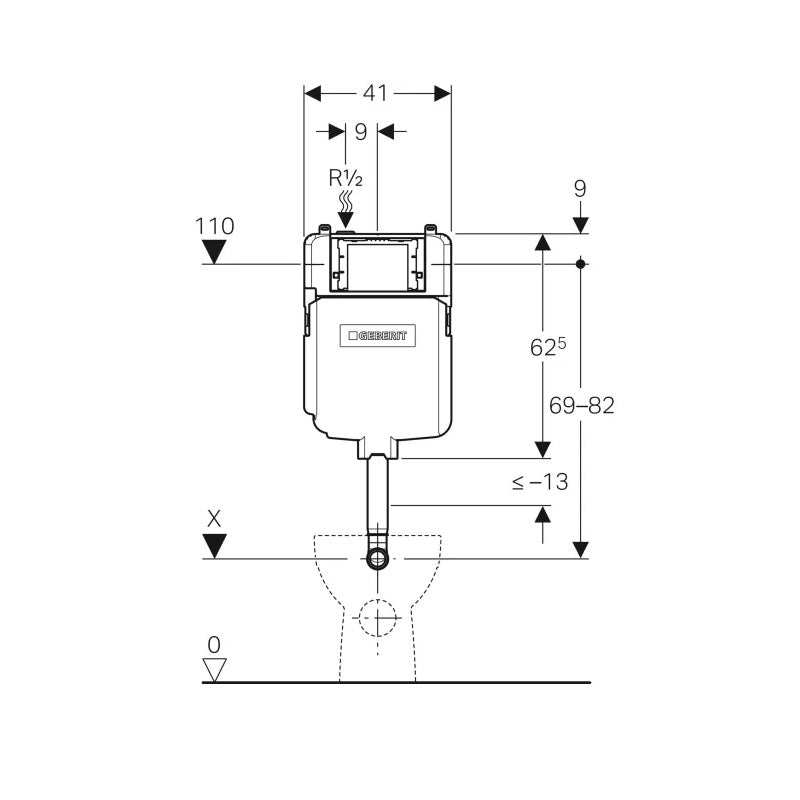

Geberit In-Wall Cistern Specifications
Overall External Dimensions
Total Width: 410 mm
Total Height: Variable (Cistern body 625 mm)
Total Depth: 80 mm (standard) to 120 mm (extended)

Installation Details
Flush Plate Height: 1100 mm (reference mark from finished floor)
Water Connection: R 1/2" (top center)
Cistern Depth Range: 80 mm – 120 mm (wall thickness adjustment)
Panel Thickness Range: 10 mm – 50 mm (indicated by 1-5 cm notation)

Plumbing Clearances
Flush Pipe Adjustment: 69 mm – 82 mm (vertical range)
Connection Center (X): Standardized for wall-hung pans (aligns with 180 mm P-trap)
Floor Clearance: Designed for "0" finished floor level reference
