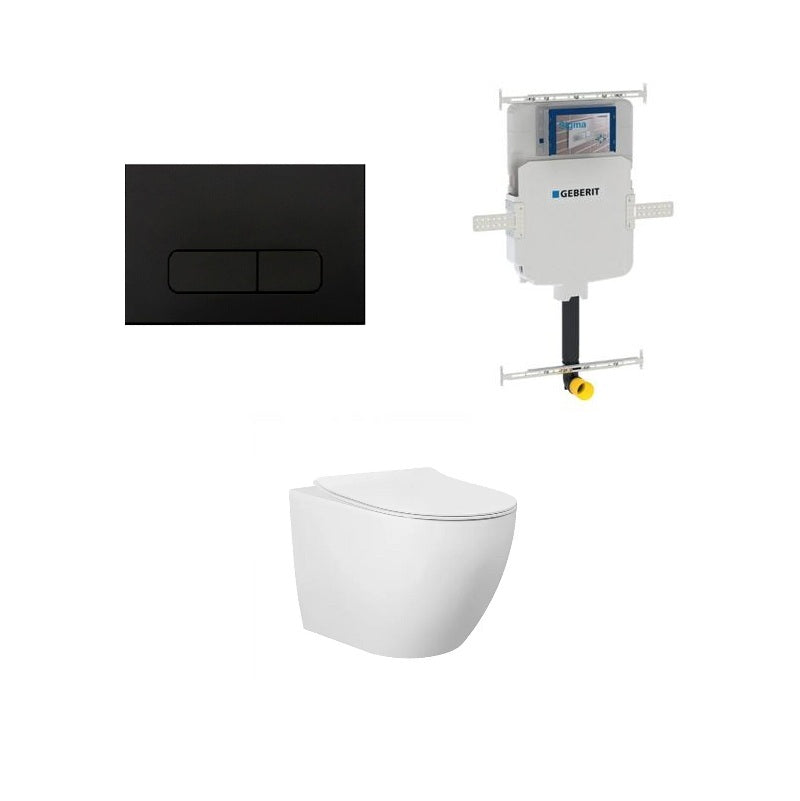

Geberit Cremona Rimless Tornado In Wall Toilet Suite Package - Matte Black Button

SKU: GB-PCK-SS-MB
Geberit Cremona Rimless Tornado In Wall Toilet Suite Package - Matte Black Button | Indulge Bathroom
Indulge

Geberit Cremona Rimless Tornado In Wall Toilet Suite Package - Matte Black Button

Description

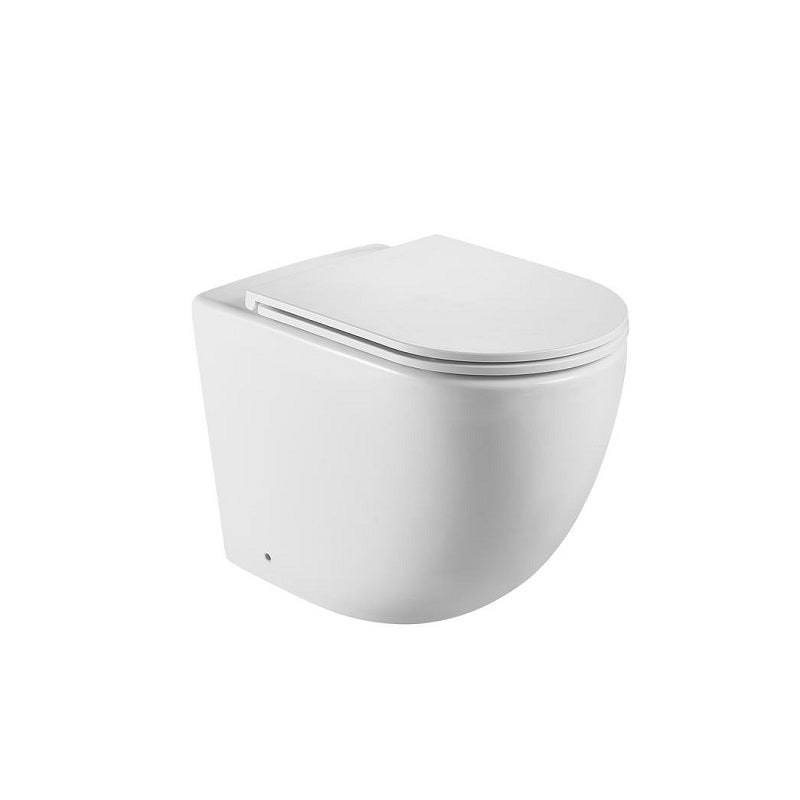

Cremona Vortex Tornado Rimless In Wall Toilet

  • Tornado & Rimless Flushing Technology
  • Ergonomic Soft Close Slim Seat
  • Nano Glazed Easy Maintenance
  • Gloss White Ceramic Finish
  • S-Trap Setout 100-140mm
  • 15 Years Warranty on Ceramics
  • WELS 4 Star Rated: 4.5L/3L, (3.5L)
  • 3 Years on Parts

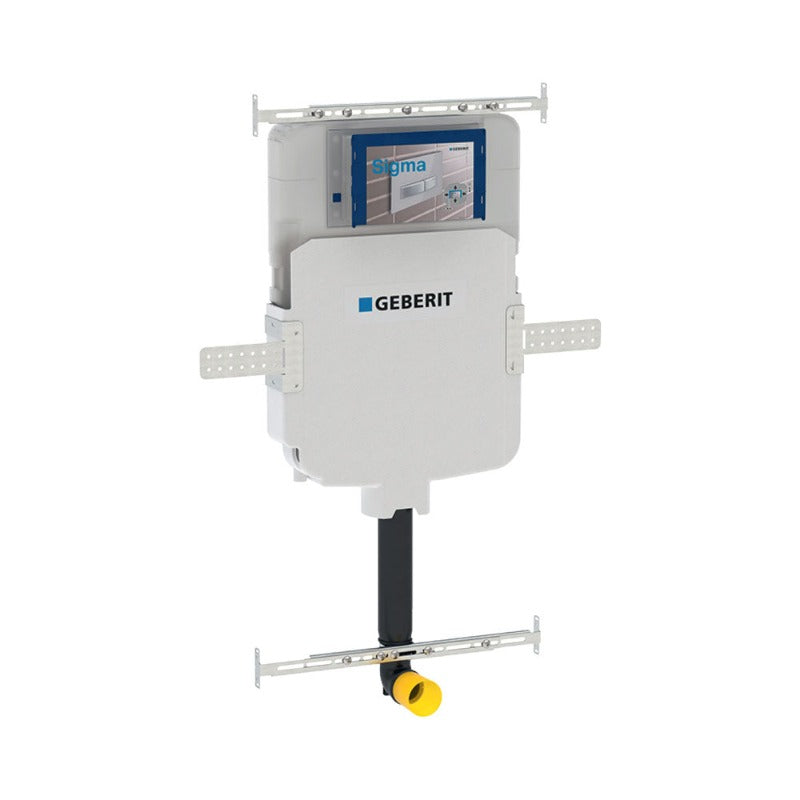

Geberit Sigma 8 In Wall Cistern - Wall Faced

  • WELS 4 Star 4.5L/3L.
  • Leak-proof high density, impact-resistant one-piece blow moulded HDPE tank.
  • A dual-flush plate provides access for servicing the internal parts of the cistern.
  • Suitable for S or P trap back to toilet pans.
  • Operating pressure 10-1000kpa.
  • Fits standard 90mm walls.
  • Freedom to choose over 30 flush button designs available in Australia.
  • Up to 15 years warranty and 25 years spare parts availability.

The Geberit Sigma8 Concealed Cistern is designed in Switzerland and made in Germany from a single piece of blow moulded HDPE, making it permanently leak-proof.
Specifications

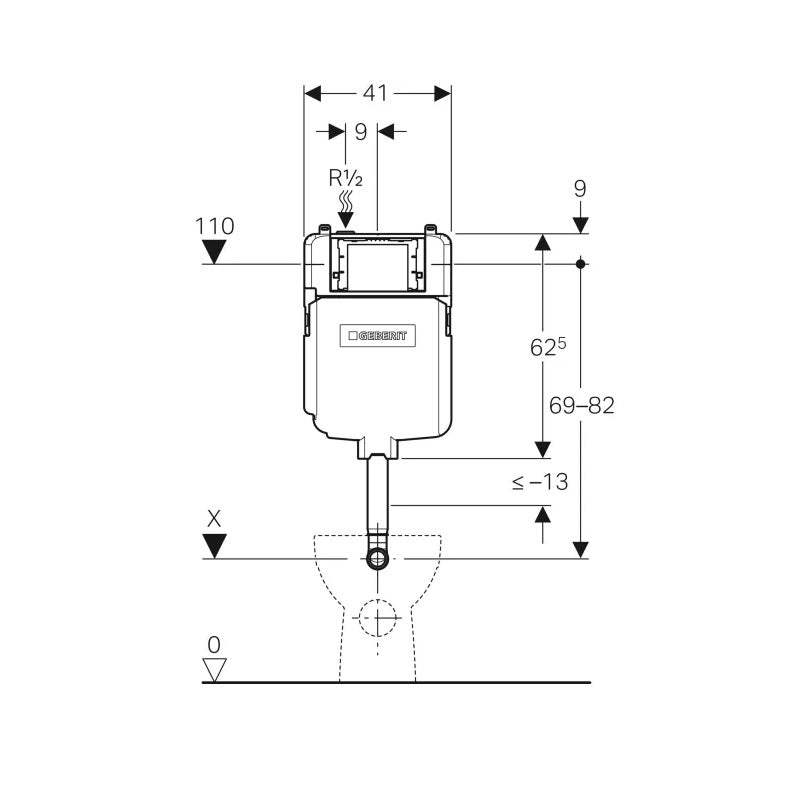

Geberit In-Wall Cistern Specifications
Overall External Dimensions
Total Width: 41 cm (410 mm)
Total Height: Cistern body height 62.5 cm (625 mm)
Total Depth: 8 cm – 12 cm (80 mm – 120 mm)

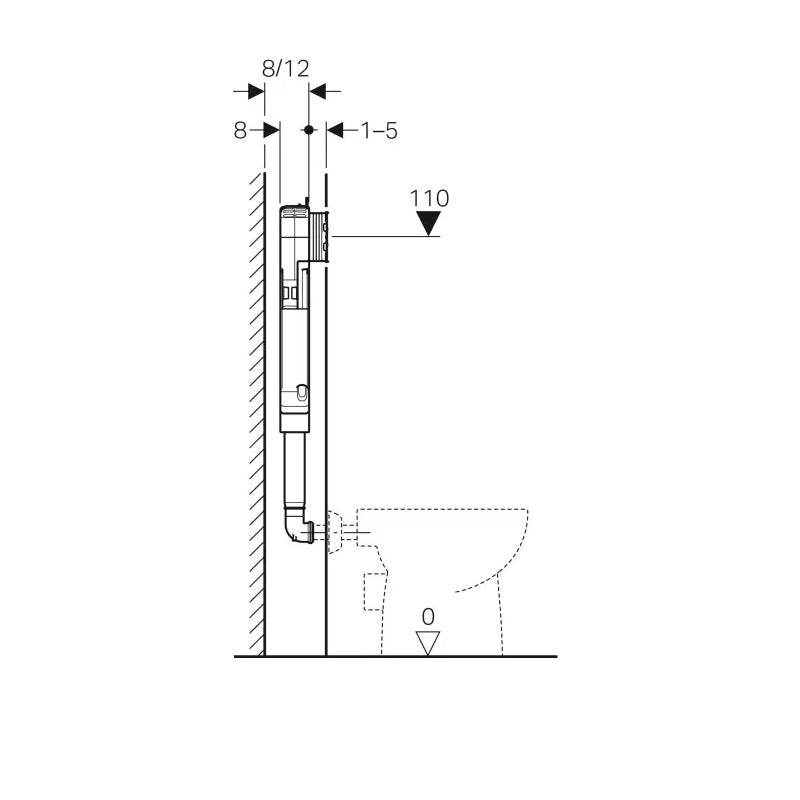

Installation Details
Flush Plate Reference Height: 110 cm (1100 mm) from finished floor
Water Connection: R 1/2" (top center)
Adjustable Flush Pipe Range: 69 cm – 82 cm (vertical reach)
Panel Mounting Thickness: 1 cm – 5 cm (10 mm – 50 mm)
Outlet Offset: Max -13 mm

Plumbing Clearances
Connection Center (X): Aligns with standard floor-standing or wall-hung inlets
Floor Reference: Designed for "0" finished floor level installation

Floor Standing Toilet (570mm Model) Specifications
Overall External Dimensions
Total Width: 360 mm
Total Height: 410 mm
Total Depth: 570 mm

Seat & Pan Dimensions
Pan Height: 410 mm
Pan Width: 360 mm
Seat Length: 440 mm (internal pan opening area)
Configuration: Back-to-wall floor standing design

Setup Details
Fixing Points: 150 mm (horizontal spacing for seat/mounting)
Inlet Hole: Ø 60 mm (center position at rear)
Outlet Hole: Ø 100 mm (center position at rear)
Rear Opening Height: 365 mm (internal clearance at the back)

Plumbing & Trap Clearances
P trap: 180 mm (height from floor to center of outlet)
