Cremona Vortex Short Projection Tornado Rimless Toilet Suite

SKU: Cremona Vortex Compact
Cremona Vortex Short Projection Tornado Rimless Toilet Suite | Indulge Bathroom
Indulge

Cremona Vortex Short Projection Tornado Rimless Toilet Suite

Description

The Cremona Tornado Rimless Compact Toilet Suite is the ideal solution for bathrooms where space is at a premium. Its short projection, compact design allows it to fit into tighter spaces without compromising on performance or style.

The ceramic is fired at a high temperature of 1240°C and features a special glaze, making it hard, scratch-resistant, and easy to maintain. This suite features advanced Tornado & Rimless Clean Flush Technology, which provides a quiet yet powerful flush that prevents bacteria growth and saves water. It includes an ergonomic, easy-release soft-close seat and has a universal water inlet for flexible installation. With a 4-star WELS rating and a 15-year warranty, it's a smart choice for any modern bathroom.

  • Dimensions: 620 x 380 x 810mm
  • Design: Compact Design for Smaller and Tighter Spaces, Ergonomic Seat-height Design
  • Technology: Tornado & Rimless Clean Flush Technology, Quiet, Clean Flush, Less Noise
  • Seat: Easy-release Duraplas Slim Seat, Soft-close Slim Toilet Seat (12 months warranty)
  • Installation: Universal Water Entry: Top, Left or Right Inlet; S-Trap: 100-205mm; P-Trap: 180mm
  • WELS Rating: WELS 4 Star Rated 4.5/3L
  • Warranty: 15 Years warranty

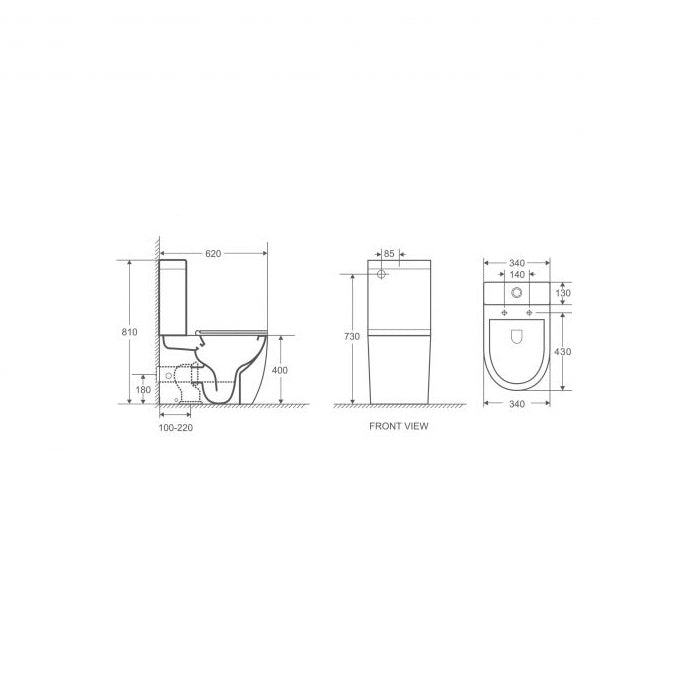

Specifications

Overall External Dimensions
Total Width: 340 mm
Total Height: 810 mm
Total Depth: 620 mm

Seat & Pan Dimensions
Pan Height: 400 mm
Pan Width: 340 mm (at the front curve)
Seat Length: 430 mm (internal pan opening area)
Configuration: Two-piece close-coupled design

Cistern & Setup Details
Cistern Height: 810 mm (total) / 730 mm (top of pan to top of cistern)
Cistern Width: 340 mm
Cistern Depth: 130 mm
Inlet Position: 85 mm (from the side of the cistern)
Fixing Points: 140 mm (horizontal spacing for seat)

Plumbing & Trap Clearances
P trap: 180 mm (height from floor to center of outlet)
S trap: 100-220 mm (set out range from wall to center of floor outlet)
