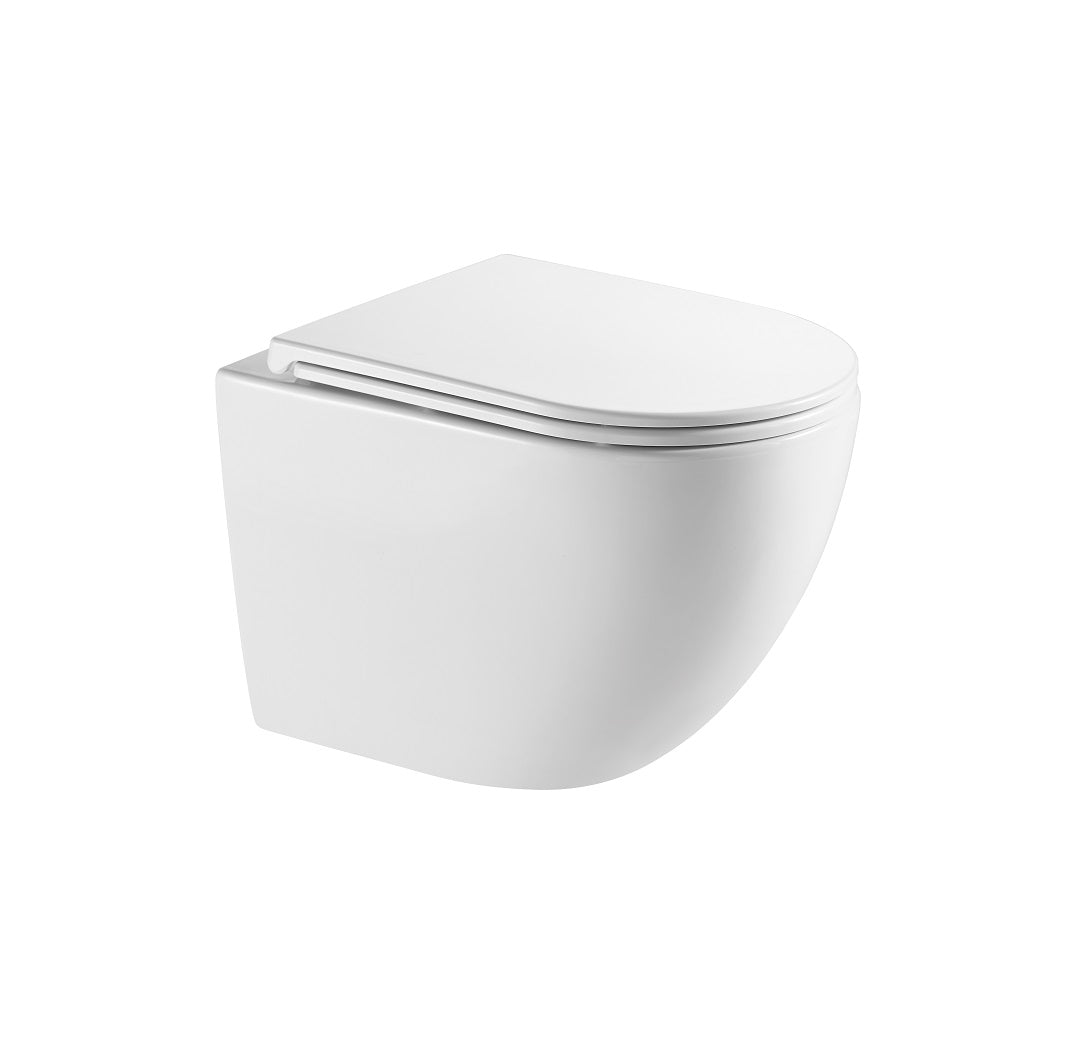

Cremona Rimless Tornado Vortex Wall Hung Toilet Suite Pan

SKU: CREMONA VORTEX WALL HUNG
Cremona Rimless Tornado Vortex Wall Hung Toilet Suite Pan | Indulge Bathroom
Indulge

Cremona Rimless Tornado Vortex Wall Hung Toilet Suite Pan

Description

Cremona Rimless Tornado Vortex Wall Hung Toilet Suite Pan

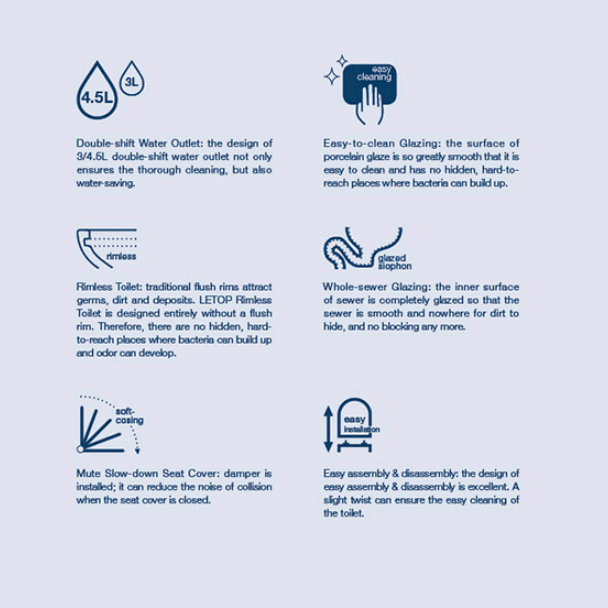

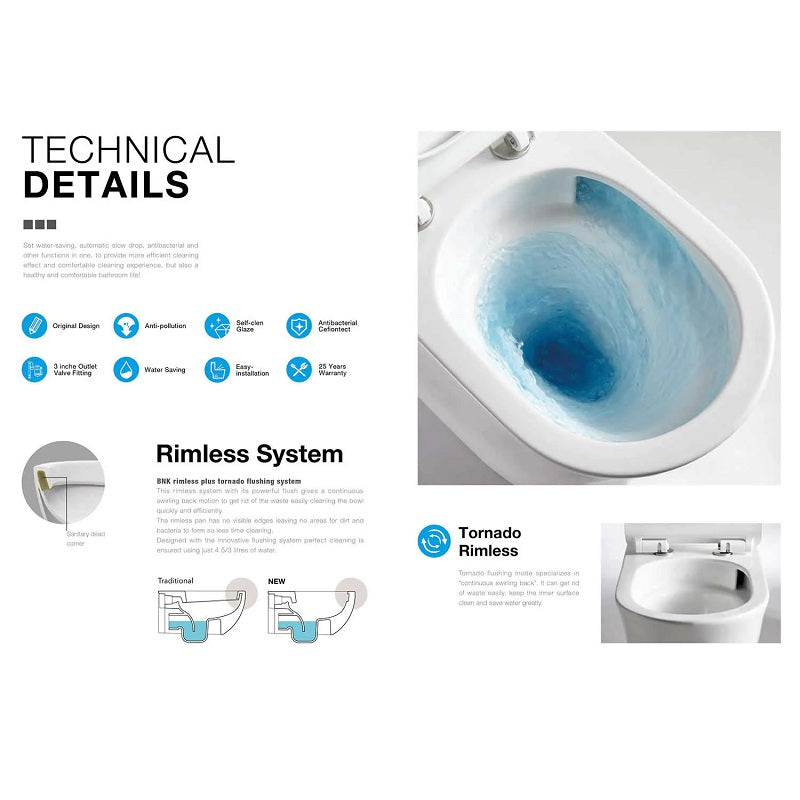

  • Tornado & Rimless Flushing Technology
  • Tornado Quiet Flush
  • 520 x 365 x 360mm
  • Ergonomic Soft Close Slim Seat
  • Nano Glazed Easy Maintenance
  • Gloss White Ceramic Finish
  • P-trap set out 180mm
  • 15 Years Warranty on Ceramics
  • WELS 4 Star Rated, 4.5L/3L (3.5L Avg/Flush)
  • WELS Registration: L04713
  • 3 Years on Parts

For Use With R&T Wall Hung Cistern (G30031) or Geberit Wall Hung Cistern(111.698.00.1)

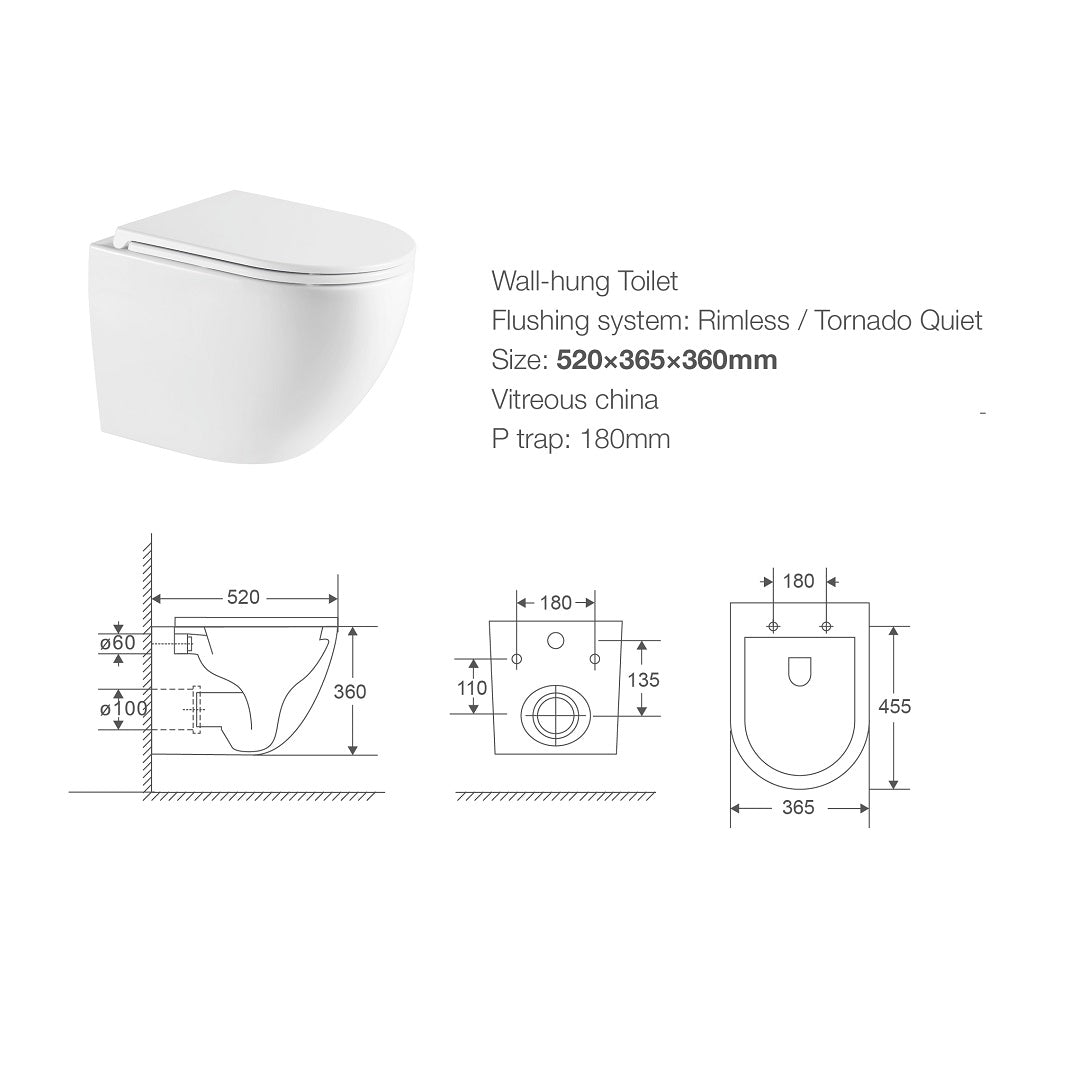

Specifications

Overall External Dimensions
Total Width: 365 mm
Total Height: 360 mm
Total Depth: 520 mm

Seat & Pan Dimensions
Pan Height: 360 mm
Pan Width: 365 mm
Seat Length: 455 mm (internal pan opening area)
Flushing System: Rimless / Tornado Quiet
Material: Vitreous china

Setup Details
Mounting Points: 180 mm (horizontal spacing for wall bolts)
Inlet Hole: Ø 60 mm (center position at rear)
Outlet Hole: Ø 100 mm (center position at rear)
Bolt to Inlet Height: 110 mm
Bolt to Outlet Height: 135 mm

Plumbing & Trap Clearances
P trap: 180 mm (standard height from finished floor to center of outlet)
