Cesena Vortex Matte Black Rimless Tornado In Wall Toilet Suite Pan

Description

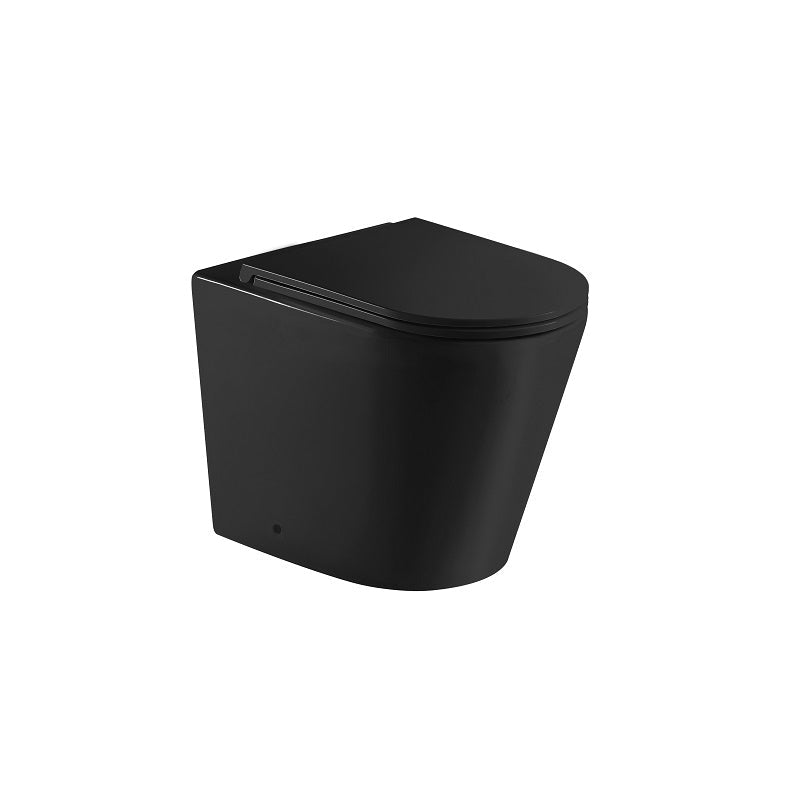

The Cesena Matte Black Rimless In-Wall Toilet Pan is the perfect choice for creating a minimalist and sophisticated bathroom. Its back-to-wall, in-wall design conceals the cistern for a clean and uncluttered look.

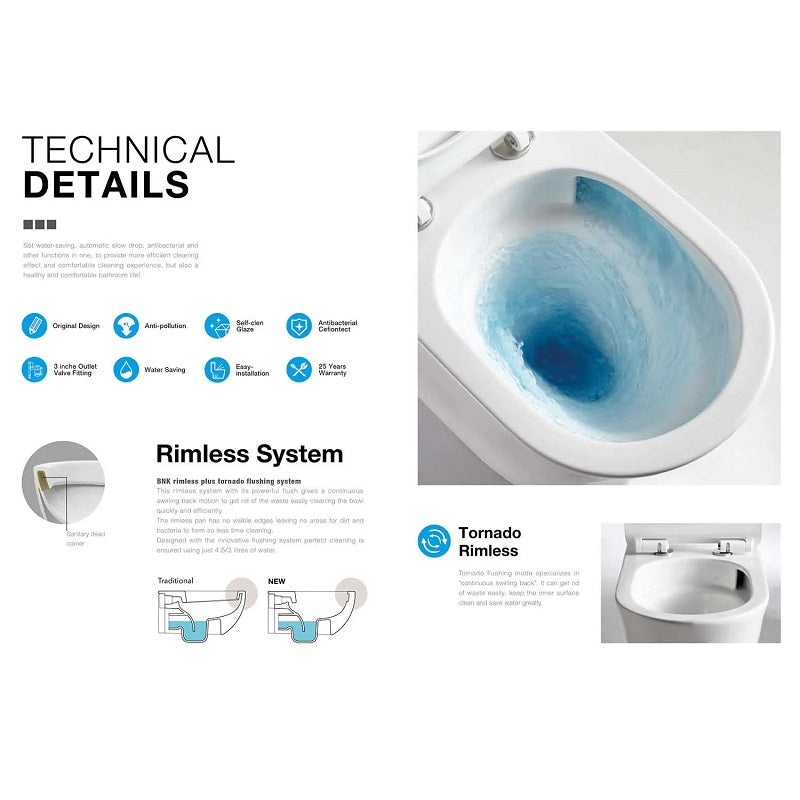

The pan features powerful Tornado & Rimless Flushing Technology for a superior clean with every flush. This high-quality pan is made with vitreous ceramic glazing and comes with a soft-close slim toilet seat. It offers a 15-year warranty on the ceramics and 3 years on parts, and is designed for use with R&T or Geberit concealed cisterns. With a 4-star WELS rating, it's also a water-efficient choice.

  • Finish: Matte Black
  • Flushing: Tornado & Rimless Flushing Technology
  • Installation: Back-to-wall installation
  • For Use With: R&T Concealed Cistern (G30032) or Geberit Frameless Concealed Cistern (109.795.00.1)
  • Setout: P-trap set out 180mm, S-trap set out 100-140mm
  • Includes: Soft-close slim toilet seat

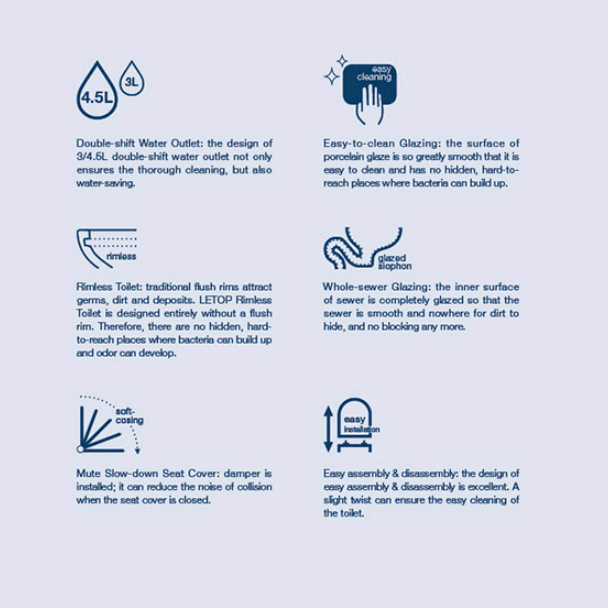

  • WELS Rating: WELS 4 Star Rated: 4.5L/3L (3.5L)
  • Warranty: 15 Years Warranty on Ceramics, 3 Years on Parts
Specifications

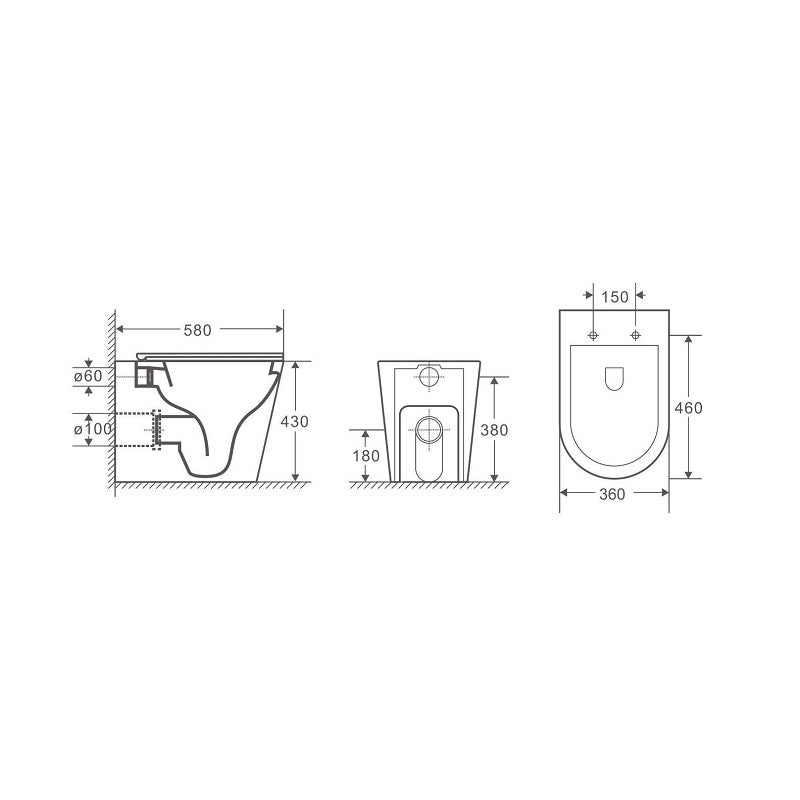

Overall External Dimensions
Total Width: 360 mm
Total Height: 430 mm
Total Depth: 580 mm

Seat & Pan Dimensions
Pan Height: 430 mm
Pan Width: 360 mm
Seat Length: 460 mm (internal pan opening area)
Configuration: Back-to-wall floor standing design

Setup Details
Fixing Points: 150 mm (horizontal spacing for seat/mounting)
Inlet Hole: Ø 60 mm (center position at rear)
Outlet Hole: Ø 100 mm (center position at rear)
Rear Opening Height: 380 mm (internal clearance at the back)

Plumbing & Trap Clearances
P trap: 180 mm (height from floor to center of outlet)
