Cesena Rimless Tornado Vortex Wall Hung Toilet Suite Pan

SKU: CESENA VORTEX WALL HUNG
Cesena Rimless Tornado Vortex Wall Hung Toilet Suite Pan | Indulge Bathroom
Indulge

Cesena Rimless Tornado Vortex Wall Hung Toilet Suite Pan

Description

Cesena Rimless Tornado Vortex Wall Hung Toilet Suite Pan

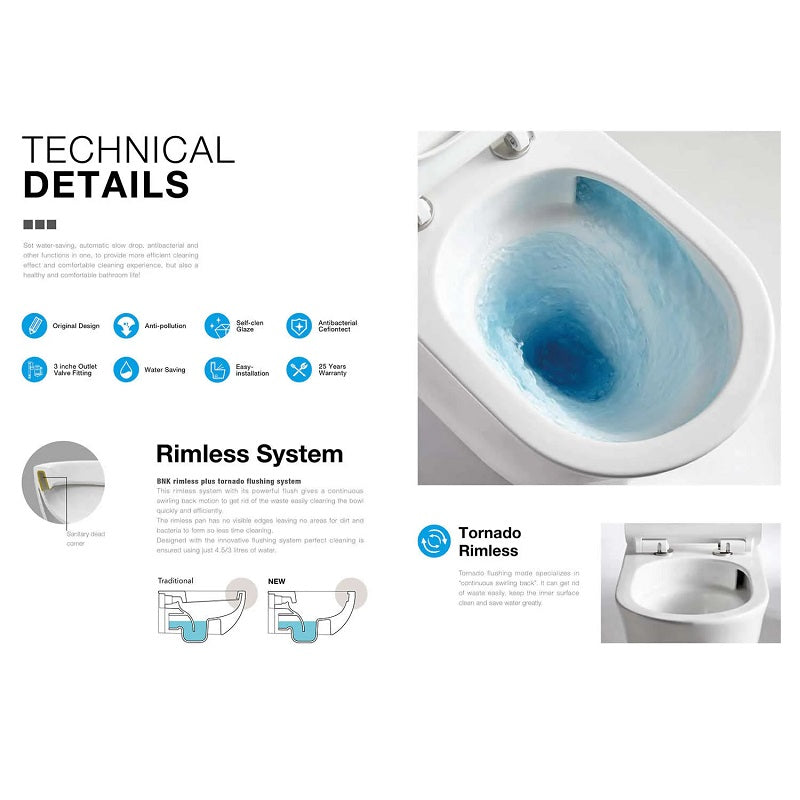

  • Tornado & Rimless Flushing Technology
  • Tornado Quiet Flush
  • 515 x 355 x 365mm
  • Ergonomic Soft Close Slim Seat
  • Nano Glazed Easy Maintenance
  • Gloss White Ceramic Finish
  • P-trap set out 180mm
  • 15 Years Warranty on Ceramics
  • WELS 4 Star Rated, 4.5L/3L (3.5L Avg/Flush)
  • WELS Registration: L04713
  • 3 Years on Parts

For Use With R&T Wall Hung Cistern (G30031) or Geberit Wall Hung Cistern(111.698.00.1)

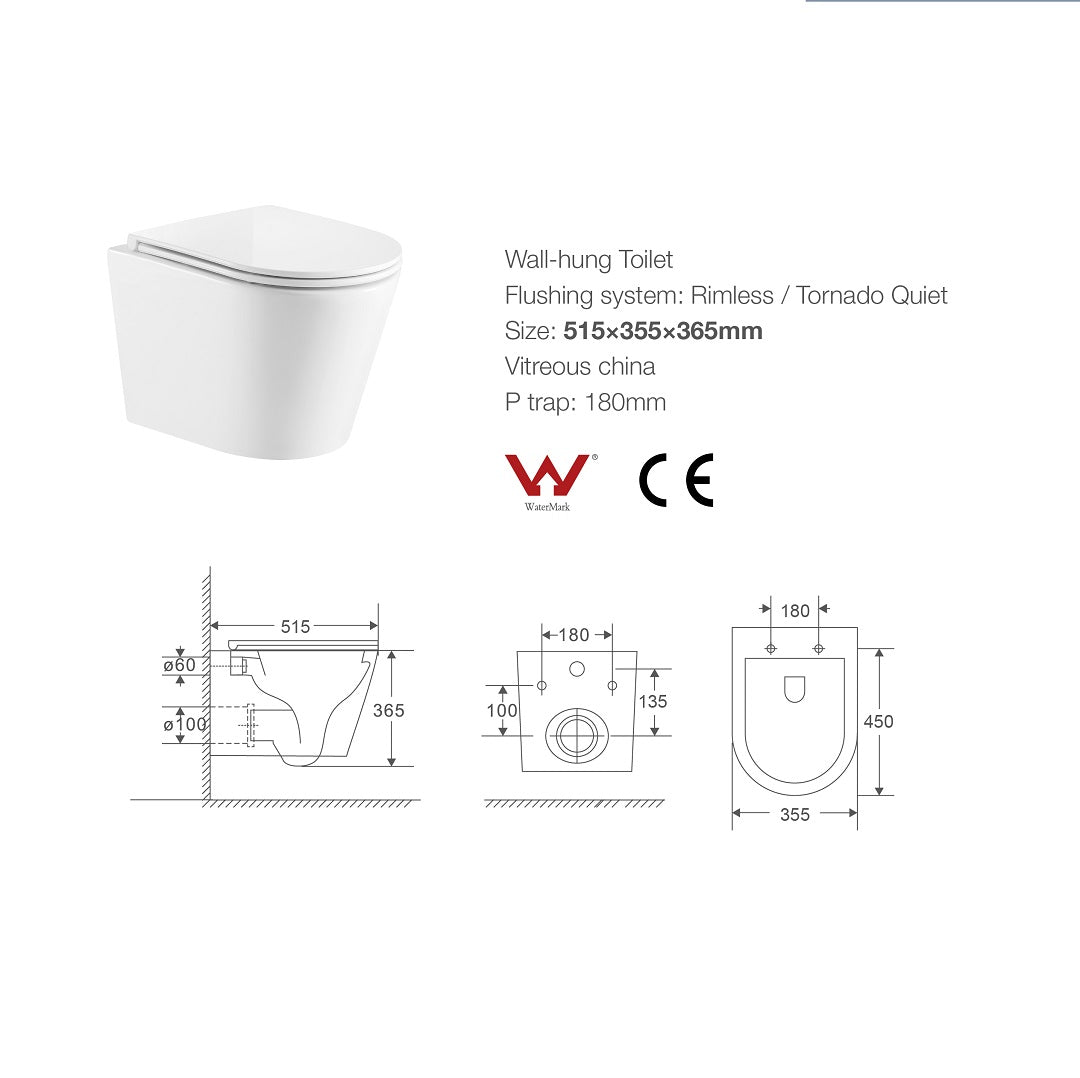

Specifications

Overall External Dimensions
Total Width: 355 mm
Total Height: 365 mm
Total Depth: 515 mm

Seat & Pan Dimensions
Pan Height: 365 mm
Pan Width: 355 mm
Seat Length: 450 mm (internal pan opening area)
Flushing System: Rimless / Tornado Quiet
Material: Vitreous china

Setup Details
Mounting Points: 180 mm (horizontal spacing for wall bolts)
Inlet Hole: Ø 60 mm (center position at rear)
Outlet Hole: Ø 100 mm (center position at rear)
Bolt to Inlet Height: 100 mm
Bolt to Outlet Height: 135 mm

Plumbing & Trap Clearances
P trap: 180 mm (standard height from finished floor to center of outlet)
